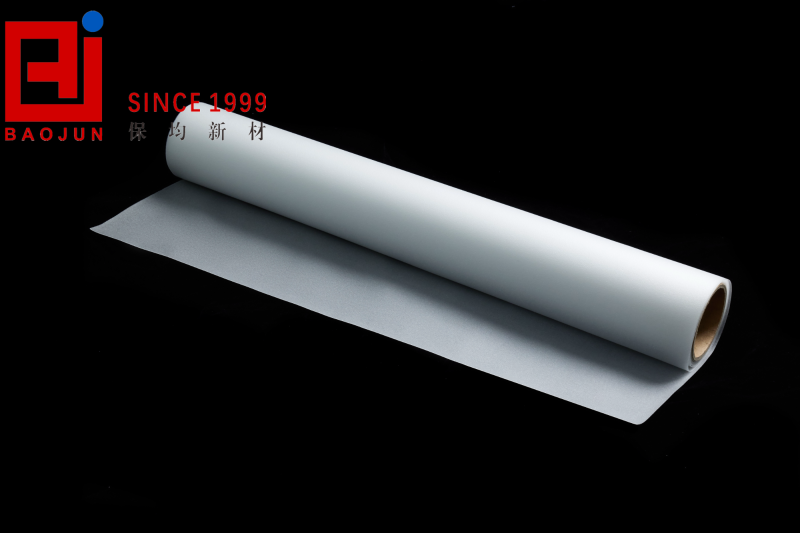

EVA high transparency and anti-PID adhesive film

Item No.: 001
Adhering to scientific and technological innovation for development, the company has established a research and development team led by many doctors, and built a 1000 square meters research and development laboratory
Description Review
Description

1.Product Introduction

       Photovoltaic EVA packaging film is made of ethylene-vinyl acetate copolymer (EVA) with various necessary additives. Its main functions in the packaging of solar cells are: supporting and fixing solar cells; Increase the transmittance of sunlight; Resist the damage of the external environment on the performance of the battery and protect the battery; The product has the following characteristics:

       A. Excellent peel strength after aging to ensure that outdoor components do not delaminate for 25 years;

       B. Excellent stability and product compatibility;

       C. Good operability, easier lamination, short lamination time and high efficiency;

       D. Superior weather resistance (including high temperature, high humidity, ultraviolet, etc.), PID resistance;

       E. Excellent light transmittance ensures the maximum power of the module.

       The main models are:

       A. BJ-920 (high transmittance PID): BJ-920 has high transmittance in the ultraviolet light area, and the light transmittance in the ultraviolet area is ≥ 80%. When used, it is close to the glass surface. Compared with ordinary EVA film, it can more effectively improve the conversion efficiency of the module by 1.5% - 5%; B. BJ-921 (high cut-off resistance PID): the light transmittance in the ultraviolet area is ≤ 30%, and the back panel surface can effectively prevent the back panel from being damaged by ultraviolet light, slow down the aging speed and extend the service life of the module.

2.Product technical parameters:

Performance

Model

BJ-920

BJ-921

Thickness(mm)

0.3-1.0

0.3-1.0

Width(mm)

≤1400

≤1400

Roll length(m)

150-350

150-350

Area density deviation(%)

±4

±4

Density(g/cm3)

0.95-0.96

0.95-0.96

Crosslinking degree(%)

≥75

≥75

Tensile strength(MPa)

≥18

≥18

Elongation(%)

≥500

≥500

Water absorption(20℃、24h)

≤0.1%

≤0.1%

Peel strength from glass(N/cm)

≥60

≥60

Peel strength from backplane(N/cm)

≥40

≥40

Shrinkage(%)

Direction(MD)

≤3.0

≤3.0

Droadwise(TD)

≤1.5

≤1.5

Volume resistivity(Ω·cm)

≥1*1015

≥1*1015

Breakdown voltage strength (kv/mm)

≥26

≥26

UV aging △YI

(120kwh/m2,1000 h)

≤4

≤4

Damp-heat aging △YI

(85℃/85%,1000 h)

≤4

≤4

Transmittance(%)

380-1100nm

≥91

≥91

290-380nm

≥80

≤30

3.Lamination process:


3.1Single-cavity lamination parameters

Product model

Lamination temperature(℃)

Vacuum pumping time(s)

Holding pressure

Holding time

one paragraph

Section II

three-section

BJ-920

142±2

360±60

-70

-45

-20

600-660

BJ-921

142±2

360±60

-70

-45

-20

600-660

3.2

Product model

First chamber temperature(℃)

Vacuum pumping time(s)

Holding pressure

Holding time

Second chamber temperature(℃)

Vacuum pumping time(s)

Holding pressure

Holding time

 one paragraph

Section II

three-section

one paragraph

Section II

three-section

BJ-920

122±2

360±60

-70

-45

-20

180±30

145±2

30±10

-70

-45

-20

480±60

BJ-921

122±2

360±60

-70

-45

-20

180±30

145±2

30±10

-70

-45

-20

480±60

Note: According to the operation of the customer's equipment, the temperature and time of the laminator can be adjusted appropriately to meet the production requirements. The crosslinking degree shall be controlled within the acceptable range, and 85% is the best. Other auxiliary materials used shall be qualified products tested by the industry recognized testing agency.

4、 Storage and use:

      1. Store in a cool and dry constant temperature room with temperature ≤ 30 ℃ and humidity ≤ 60%; The storage period of this product is six months; It is recommended to use it within three  months;

      2. Vacuum packaging, inner packaging 150-300m/roll (except for special requirements);

      3. The long-term stacking height of products is not easy to be too high, and it is better to store products below five layers to avoid bending and deformation caused by heavy pressure;

      4. Do not damp the product. It is recommended to use the plastic film after opening the package or cutting it within 48 hours;

      5. In order to avoid abnormal lamination of components caused by static electricity, it is recommended to eliminate static electricity in the whole process of component production.
